商品の詳細:
|
| レーザー光源: | Raycus Max IPG nlightオプション | レーザー出力: | 1000W 1500W 2000W 3000W 4000W 6000W オプション |
|---|---|---|---|
| レーザーヘッド: | Precitec Raytools WSX オプション | ロボットアーム: | 安川クカ ABB FANUC オプション |
| 定格ペイロード: | 120KG | 軸数: | 6 |
| 保護クラス: | IP 54 | アフターサービス: | エンジニアは海外勤務可能 |
| ハイライト: | 4000W robotic laser welding system,KUKA KR35 laser welding machine,3D metal parts welding robot |
||
Machine Applications
Applicable to all kinds of uneven metal pipe and sheet metal cutting, suitable for the automotive industry, mold manufacturing, kitchen utensils, metal products, such as automatic cutting.

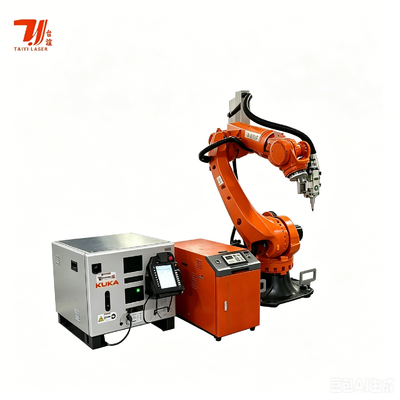

Robotic Arm 3D Laser Cutting Machine Advantages
1. This is my company positioning automotive sheet metal processing industry-specific robot, IPG1000W fiber laser, LASERMECH laser head (including the moving mechanism), positioning table, chiller, safety and other core components.
2. 6-axis linkage, a wide range of work, up to a long distance, load-bearing capacity, can be in the work space for 3D track cutting
3. Compact, wrist slim, even in harsh conditions, restrictions on a lot of places, can still achieve high-performance operation
4. Process speed and positioning can be adjusted, to achieve the best manufacturing accuracy, high yield
5. Low noise, routine maintenance interval is long, long service life
6. The manipulator can be manipulated through a handheld terminal
7. By modifying the program and hardware changes, can achieve welding, packaging, handling and other functions.
>>> Technical parameters
|
Brand
|
KUKA
|
|
Type
|
120R 2700
|
|
Number of axes
|
6
|
|
Payload
|
120Kg
|
|
Weight
|
1096 Kg
|
|
Repeatability
|
±0.05 mm
|
|
Ambient humidity
|
25% - 90%
|
|
Ambient temperature
|
0-55℃
|
|
Protection rating.(IEC 60529)
|
IP 65/IP 67
|
|
Protection rating.in-line wrist(IEC 60529)
|
IP 65/IP 67
|
|
Controller
|
KR C4
|
|
Teach pendant
|
KUKA smartPAD
|
|
Axis data
|
Motion range
|
Speed with rated payload
|
|
A1
|
±185°
|
120°/s
|
|
A2
|
-140°/-5°
|
115°/s
|
|
A3
|
+120°/-168°
|
120°/s
|
|
A4
|
±350°
|
190°/s
|
|
A5
|
±125°
|
180°/s
|
|
A6
|
±350°
|
260°/s
|
Applied materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Applied Industries:
Automatic robot arm fiber laser cutting machine applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
