商品の詳細:
|
| 証明: | CE | 状態: | 新しい |
|---|---|---|---|
| 保証: | 2年 | 最大加速: | 1.0g |
| 繰り返し精度: | ±0.03mm | 切断速度: | 80m/min |
| レーザータイプ: | ファイバーレーザー | レーザーパワー: | 1.5kw-20kwオプション |
| 単一の総重量: | 2800 kg | ||
| ハイライト: | 6000W CNC fiber laser cutter,automatic laser cutting machine with exchange table,CNC laser cutter with high power |
||

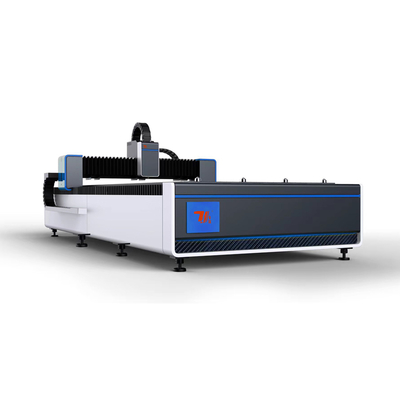

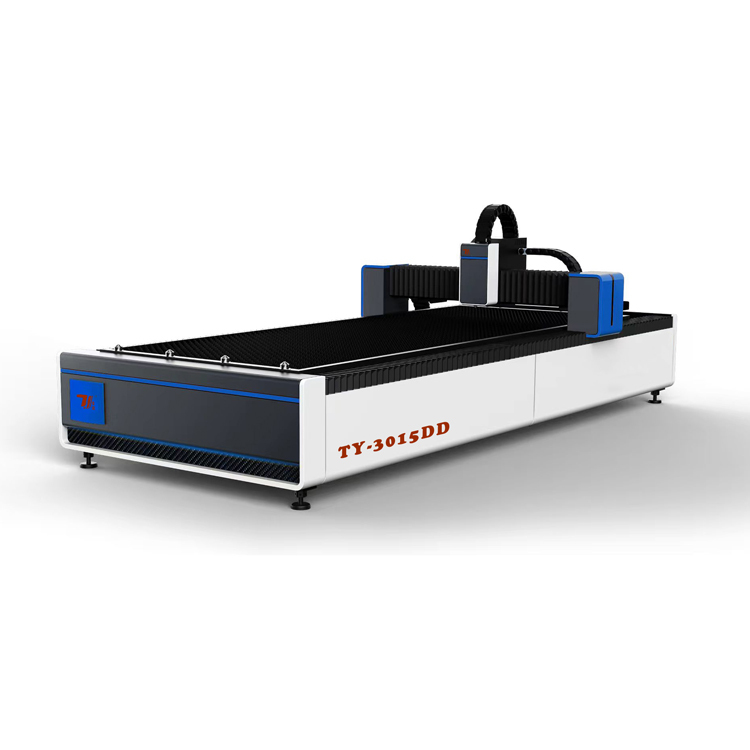

Product Parameter
| Laser source | Raycus |
| Power | 2000W |
| Cutting range | 3050/1510mm |
| Max positioning speed | 80m/min |
| X.Y axis max acceleration speed | 1.0G |
| Laser cutting head | Raytools |
| Control system | Raytools |
| Motor | INVT |
| Reducer | Kawaura |
| Transmission | Double Drive Gear Rack |
| Guide rail | SYCK Guide Rail |
| Chiller | S&A or Hanli |
| Valves | NNT |
| Electricity demand | 380V/50Hz/60Hz |
| Working temperature | 0-50℃ |
| Cooling | Water cooling |
| Continuous working time | 24 Hours |
| Appearance size | 4700*2300*1800mm |

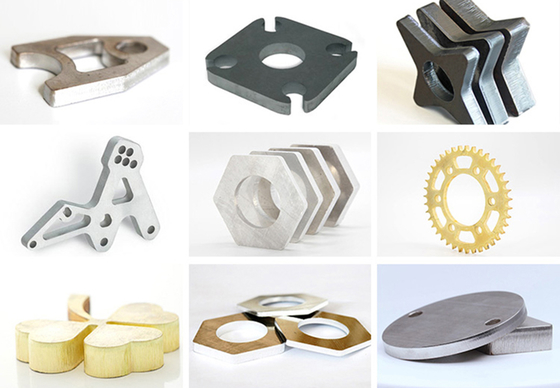

Applied materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

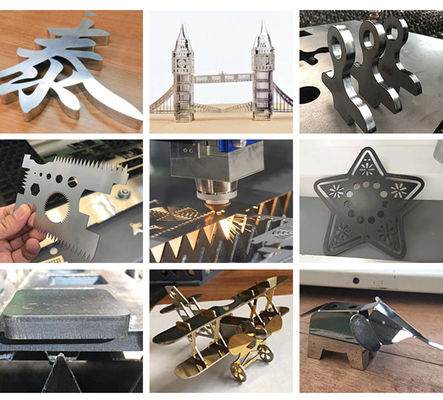

Applied Industries:
Fiber laser cutting machine applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
